Virgin Pure PTFE Teflon Flat Full Face Raised Face Gasket With Bolt Holes
Product Description
Virgin Pure PTFE Teflon Flat Full Face Raised Face Gasket With Bolt Holes：Specifications ptfe teflon gasket seal pure material made GINSEAL PTFE -based gasket materials are able to withstand significantly more aggressive chemical environments (including highly oxidizing environments) than standard non-asbestos gasket materials.
Product Detail
Virgin Pure PTFE Teflon Flat Full Face Raised Face Gasket With Bolt Holes
Specifications
ptfe teflon gasket seal
pure material made
Kaxite PTFE -based gasket materials are able to withstand significantly more aggressive chemical environments (including highly oxidizing environments) than standard non-asbestos gasket materials. However their temperature, pressure and mechanical performance are inferior to standard non-asbestos gasket materials. Metal inserted and expanded PTFE are able to operate at higher pressures

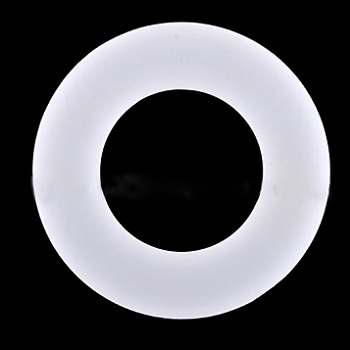

Virgin PTFE Flat Gasket
Made of pure virginal PTFE, GINSEAL PTFE gasket is a cost-favorable
Alternative for use with low mechanical stress and low pressure-temperature load. The gasket is highly resistant to practically all chemicals except for fluorine, halogen oxides, molten and dissolved alkali metals.
It is available as a plate and die-cut gasket as per DIN EN 1514-1 and in other usual dimensions as well as in special-purpose dimensions.
Recommended continuous operating temperature: Max. 150 ° C
Operating pressure: Max. 6 bars
PTFE Flat Gasket with Glass fiber
A compound consisting of modified, hence cold flow reduced PTFE with
A glass fiber fraction of 25%.
Pressure / temperature: PN 16 / 150 ° C
Attention! Consider pressure-temperature dependence
Use: Steel flange, steel container
