SPIRAL WOUND GASKET INNER RING CHAMFERING MACHINE
Product Description
Product Detail

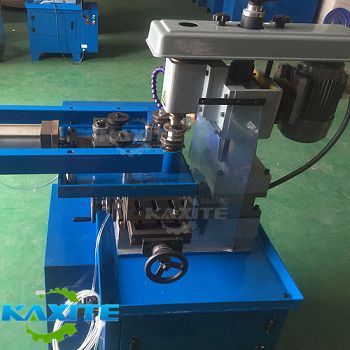

Spiral Wound Gasket Inner Ring Chamfering Machine
Spiral Wound Gasket Inner Ring Chamfering Machine is used for machining spiral wound gasket Inner ring , Spiral Wound Gasket Inner Ring Angling Machine is used for 90° chamfering at the outer circumference of the inner ring of the winding pad above Φ 250 mm. The pressing device is pneumatic, the pressure adjustment range is large, and the operation is simple. The feed adopts electronic stepless speed change to meet the processing needs of different materials.
Power: 380AV, 0.88KW , L x W x H =117 x 87 x 152m , N.W.: appr.410KGS , Work Range: ID250 ~ 1000mm,Thickness: 4.5mm, Other thickness 3.2mm on request
Working life
80,000 Hours
Weight
410kg
Color
Blue
power
0.88kw
Gasket nominal thickness
3.2mm or 4.5mm
Voltage
380/220V
Maximum Outer Diameter
1000mm
Warranty
2 years
Minmum inner Diameter
250mm
Air Pressure
6-8BAR
Repeatability of outer diameter
+/-0.2mm
MOQ
1 Piece
Rotational Speed
0-200rpm
Dimension
117*87*152cm
More information for Spiral Wound Gasket Machine for Spiral wound gasket ,please contact with KAXITE sealing co.
