MEDIUM SIZE WINDER MACHINE FOR MAKING SPIRAL WOUND GASKET
Product Description
Product Detail

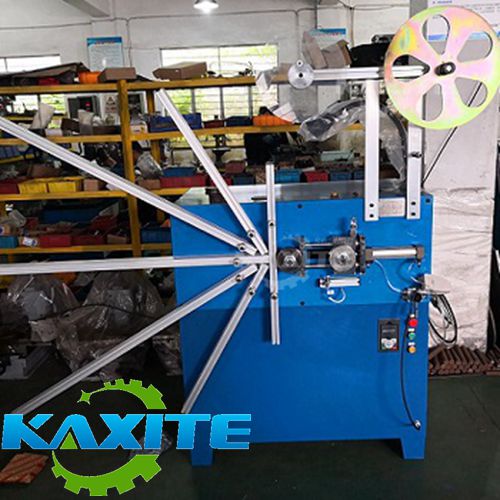

Medium Size Winder machine for making spiral wound gasket
Medium Size Winder machine for making spiral wound gasket is used for making spiral wound gasket Diameter size from φ150-φ1500 mm, the machine can produce spiral wound gasket with inner ring or without inner ring. Drive system in maintenance-free mode. It can produce different size spiral wound gasket when Speed adopts frequency conversion speed regulation
Power: 380AV, 0.4KW , L x W x H = 115 x 76 x 130cm , N.W.: appr. 600KGS , Work Range: ID300 ~ 2500mm,Thickness: 4.5mm, Other thickness3.2mm on request .
Working life
80,000 Hours
Weight
210kg
Color
Blue
power
0.4kw
Gasket nominal thickness
3.2mm or 4.5mm
Voltage
380/220V
Maximum Outer Diameter
1500mm
Warranty
2 years
Minmum inner Diameter
150mm
Air Pressure
6-8BAR
Repeatability of outer diameter
+/-0.2mm
MOQ
1 Piece
Rotational Speed
0-200rpm
Dimension
115*76*130cm
