FULL AUTOMATIC KAMMPROFILE GROOVING GASKET MAKING MACHINE
Product Description
Product Detail

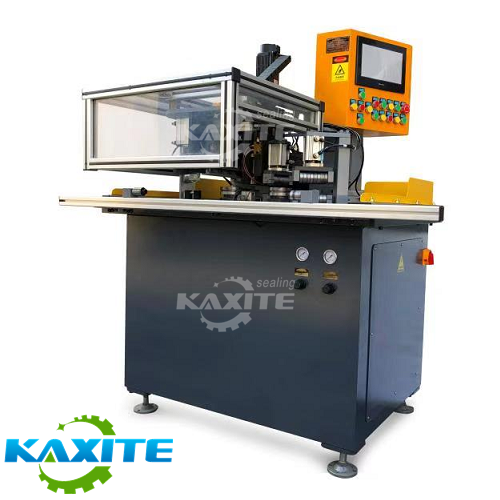

Full Automatic Kammprofile Grooving Gasket Making Machine
Full Automatic Kammprofile Grooving Gasket Making Machine is used for making Kammprofile gasket, Full Automatic Kammprofile Grooving Gasket Making Machine is a Professional sealing equipment to allow you to reduce the manufacturing time and very easy to operate with PLC. Can produce large-diameter gaskets such as Kammprofile, serrated gasket., the machine process starts from a primitive round flat metallic ring, spindled horizontally and machined by a cutting tool which removes material from the ring itself. It also can Inner Ring Beveling and Outer Ring Grooving for Spiral wound gasket and other advanced functions.
What Gasket Size the Machine Can Make:
Ring Thickness: 3 mm or other size
| Description | Value | Unit |
|---|---|---|
| Operating mode | Automatic | |
| Gasket nominal thickness | 2-4 | mm |
| Metal Ring Width | 90 | mm |
| Power | 5 | Kw |
|
INVERTER
|
HOLIP 2.2
|
Kw |
|
VOLTAGE
|
380 | V |
|
SHAFT TURNING LINE SPEED
|
Stepless (0-150)
|
/minute
|
| Approx. machine size |
95*150*160
|
cm |
| Total weight of machine | Approx. 850 | Kg |
More information for sealing machine ,please contact with KAXITE sealing co.
